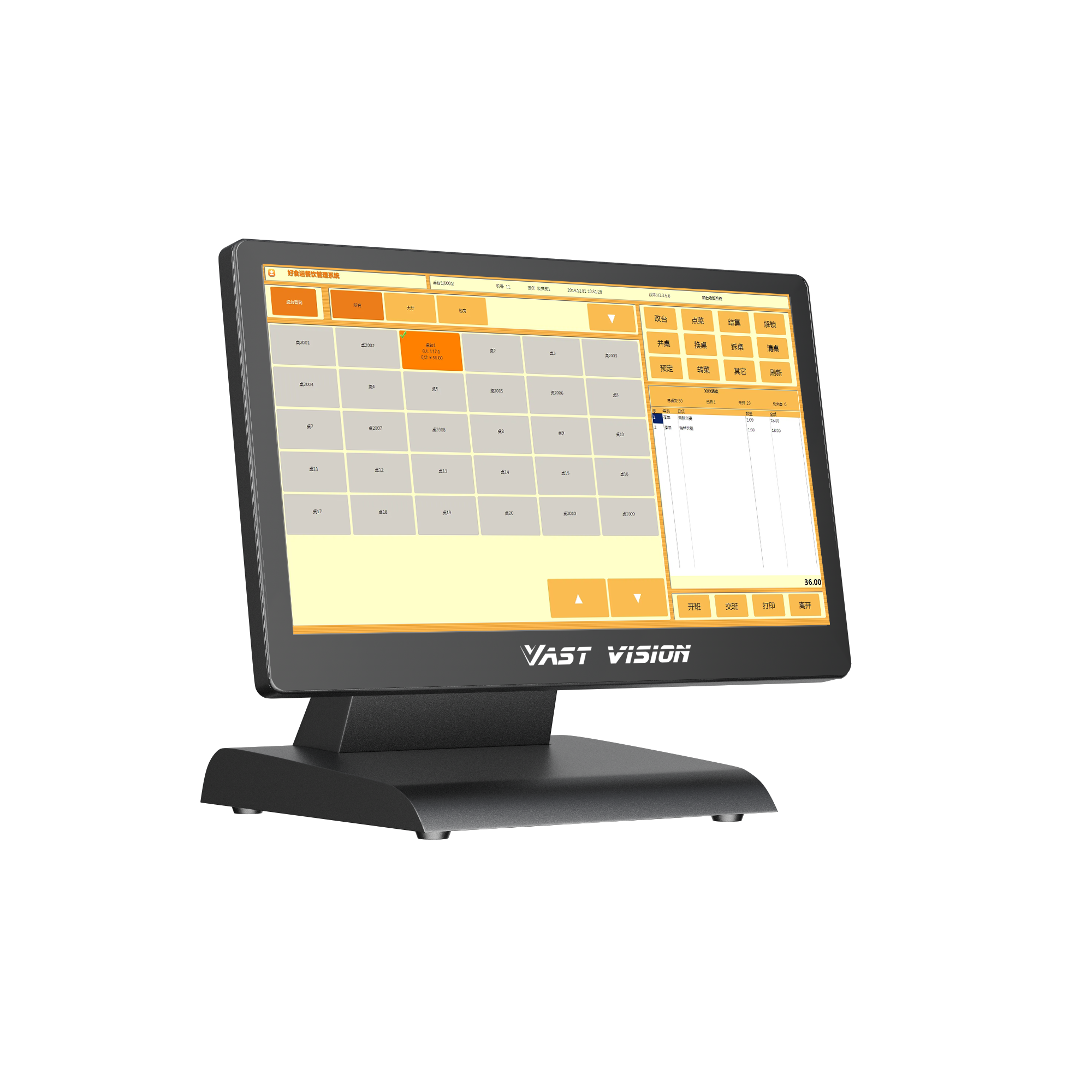

14 inch all in one single screen epos system
14 inch all in one single screen epos system
1, Compact but sturdy
2, modular design to support various peripherals
3, wifi supported
4, multi-point capacitive touch
| Configuration | |
| Main display | 14 inch LCD,1366*768, 16:9, capacitive 10 point touch |
| Operation System | Windows 7/ Windows 10/ Windows 10 IoT |
| Onboard CPU | Intel Core i3-4030U Dual core and four threads 1.9GHz |
| J4125/ J6412/ i3/ i5/ i7 (optional) | |
| Memory | DDR3: 4GB (8GB optional) |
| SSD: 64GB (128GB/ 256GB/ 512GB/ 1TB optional) | |
| I/O | Easy port* 1 |
| USB 2.0* 4 | |
| USB 3.0* 2 | |
| COM (RS232)* 2 | |
| Ethernet (RJ45) *1 | |
| VGA* 1 | |
| MIC Input* 1 | |
| Audio Output* 1 | |
| Packing info | Net weight: 3.0kg |
| Packing size: 48*18*44cm | |
| Gross weight: 4.5kg | |
| Optional functions | Wi-Fi & bluetooth 4.0 |
| Easy device | M1 MSR, 1-2-3 tracks magnetic stripe card reader |
| (optional) | R1 RFID card reader, supports 13.56MHz & 125KHz |
| B1 i-button, dallas key reader | |
| S1 Barcode reader, supports 1D and 2D barcode reading | |
| C1 Camera, supports 1280*800 resolution, 30fps | |
| Fingerprint reader, supports Windows Hello |
