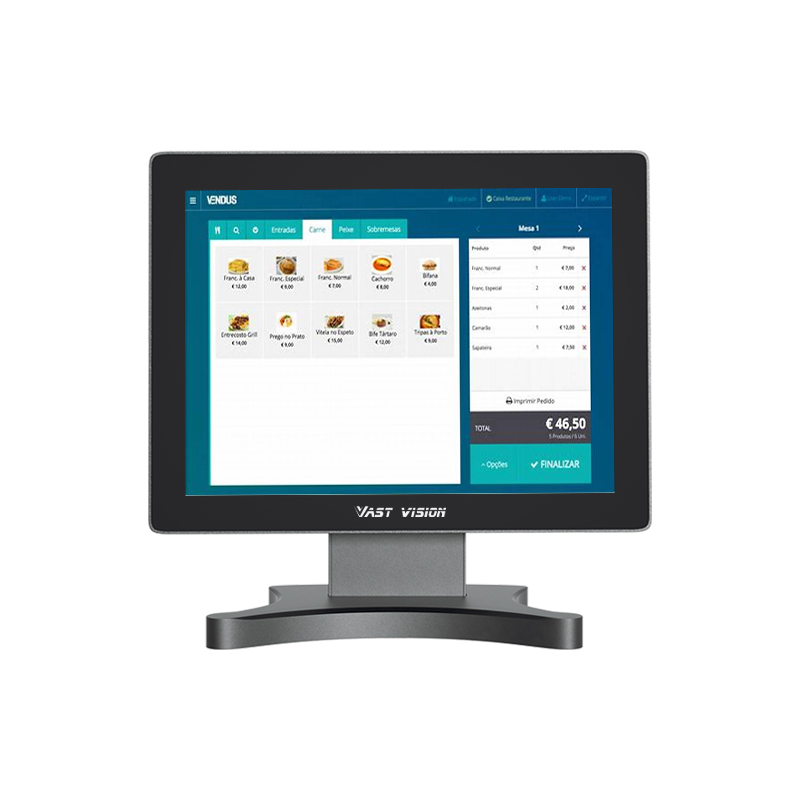

1. 15 main display, 1024*768
2. Capacitive 10 point touch panel
Configuration
Model No. | VV-Z15-X |
Operation System | Android 11 |
Onboard CPU | RK3568 ARM Cortex-A55,Quad core, 2.0GHz |
Memory | DDR4: 2GB (4GB optional) |
eMMC: 32GB | |
Main display | 15 inch LCD, 1024*768, 4:3, capacitive 10 point touch |
15.6 inch brand new LCD,1920*1080, 16:9, capacitive 10 point touch(optional) | |
14 inch LCD,1366*768, 16:9, capacitive 10 point touch(optional) | |
Network | Wi-Fi 6, IEEE 802.11.ax |
Bluetooth 4.0 | |
Ethernet 1000M | |
interface | Modular design for card reader* 1 |
USB 2.0* 4 | |
USB 3.0* 2 | |
vCOM (RS232)* 2 | |
Ethernet (RJ45) *1 | |
RJ11* 1 | |
TF card slot* 1, supports up to 128GB | |
SIM card slot* 1 | |
MIC Input* 1 | |
Audio Output* 1 | |
Packing info | Net weight: 3.6kg |
Packing size: 48*18*44cm | |
Gross weight: 5.0kg | |
M1 MSR, 1-2-3 tracks magnetic stripe card reader | |
Easy device | R1 RFID card reader, supports 13.56MHz & 125KHz |
(optional) | B1 i-button, dallas key reader |
S1 Barcode reader, supports 1D and 2D barcode reading | |
C1 Camera, supports 1280*800 resolution, 30fps |
